Introduction

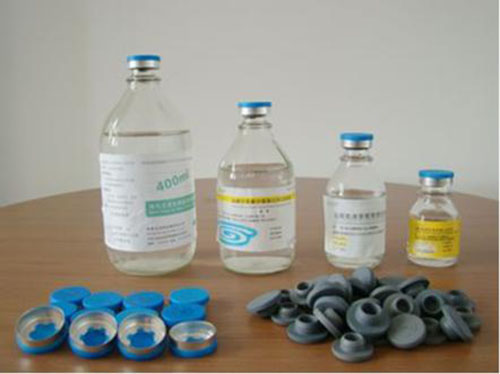

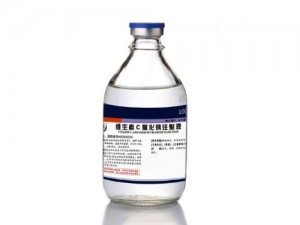

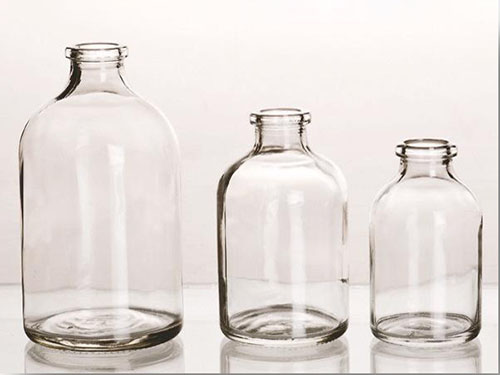

Glass bottle IV solution production line is mainly used for IV solution glass bottle of 50-500ml washing, depyrogenation, filling and stoppering, capping. It can be used for the production of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other liquid etc.

011
2
3

Product Video

Step 1

Washing machine:

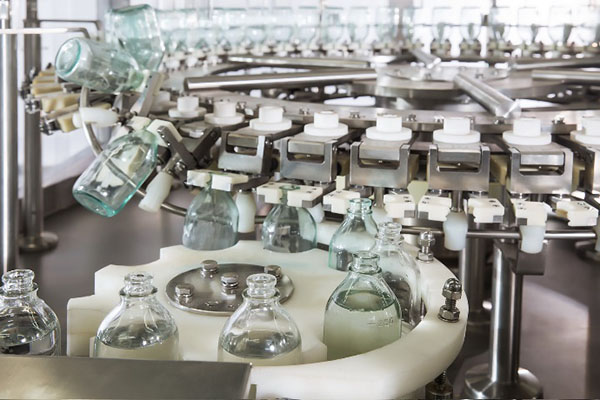

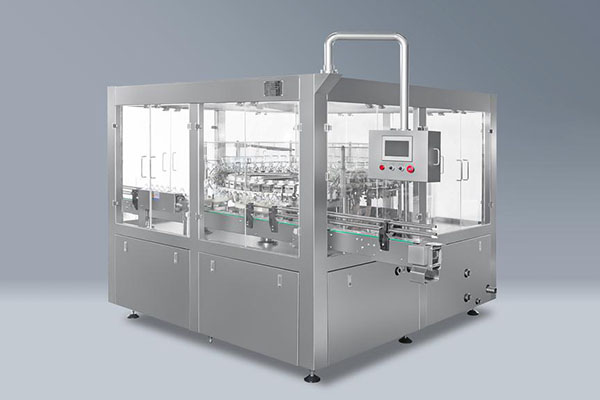

This machine is used for the fine washing for infusion glass bottle, take turns to use the normal water, purified water, injection water, clean compressed air, fresh injection water and clean compressed air to washing the bottle in turns.

4
5

Step 2

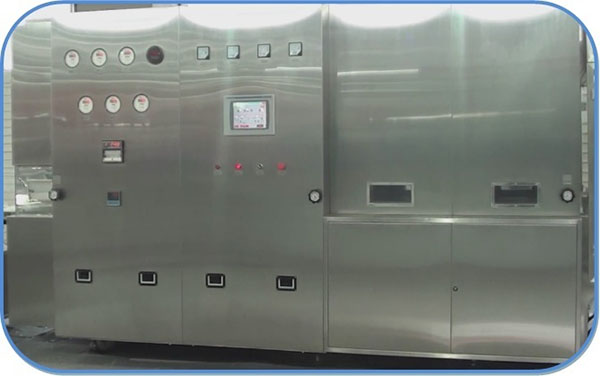

Depyrogenation Tunnel
Laminar flow sterilization tunnel used for washed vial’s dry sterilization and remove heat, It can reach the highest temperature 300～350℃, efficient sterilization time for 5-10 minutes.
It has three working area (Preheat area, heating area, cooling area).

6

Step 3

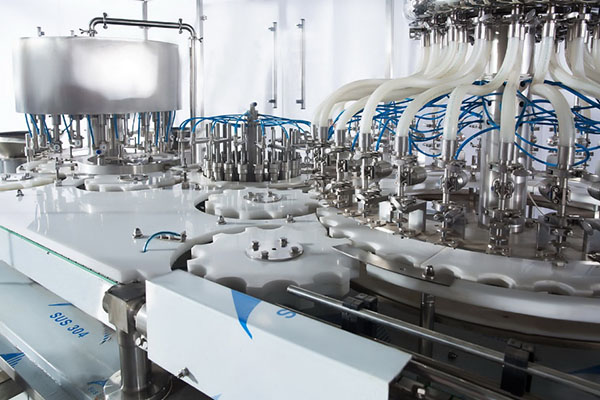

Filling, Vacuuming, Nitrogen Charging, Stoppering Machine

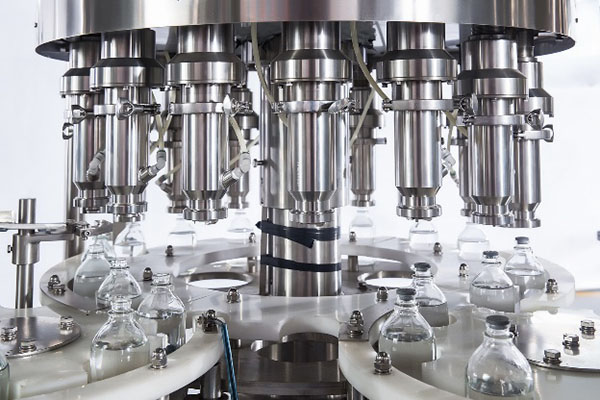

Filling part adopts Germany GEMU valve filling, high precision.
Nitrogen charging immediately after filling, also nitrogen protection between the nitrogen charging and stoppering.

No bottles no filling, no bottles no vacuuming, no bottle no nitrogen charging, ensure the vacuum level in the air tank during vacuuming, meanwhile, make sure the oxygen residual after stoppering (control within 1.0%)。

7
8
9

Step 4

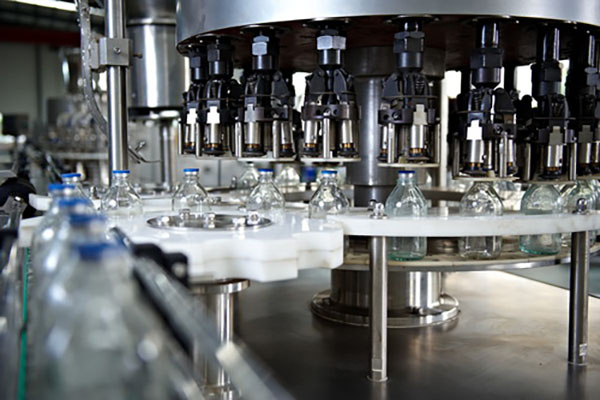

Filling and Stoppering Machine

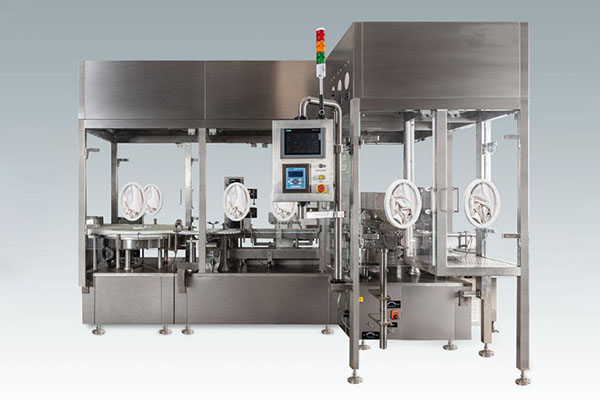

Aseptic liquid filling machine is very accurate and stable operation. The filling volume can be directly adjusted through HMI, here we have ORABS equipped with stainless steel laminar air flow hood.

11

Step 5

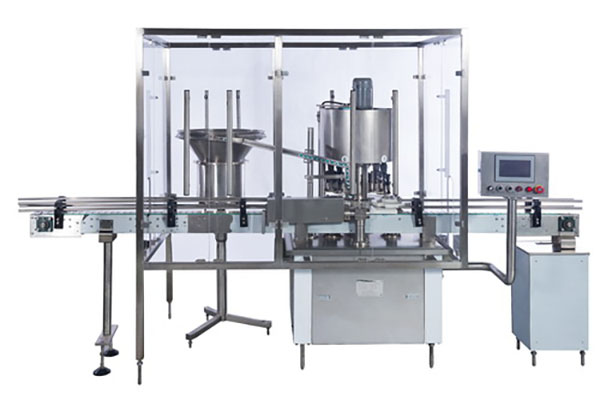

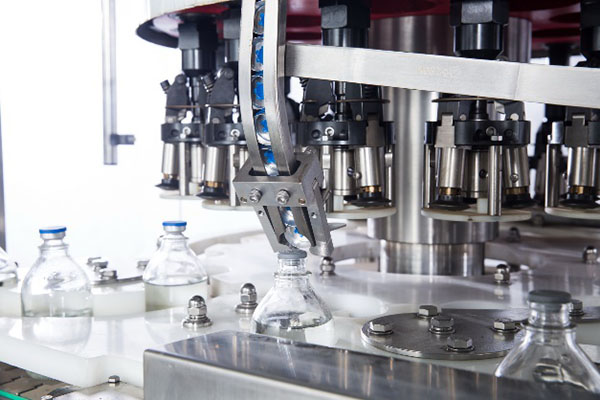

Capping Machine

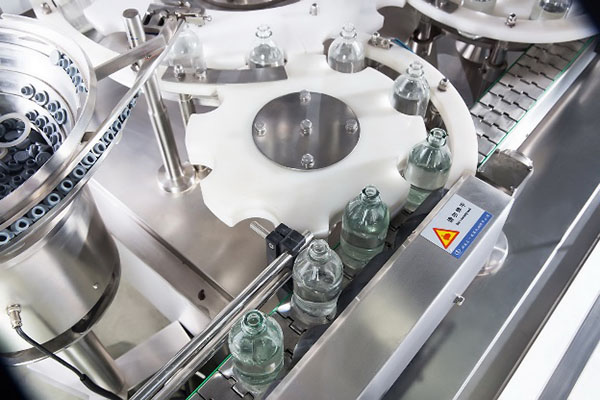

It is mainly used for glass bottles capping. Continuous operation. Picking up and crimping, at the same time rolling the cap. After the completion, the cap have the same size and edge smooth, good appearance. High-speed, low damaged.

12
13
14

Advantages:

1.Separate pipeline for cleaning medium, no cross-contamination, according to GMP requirements.
2.Filling head synchronously tracks filling, high filling accuracy.
3.Adopt full servo drive system, no mechanical transmission.
4.Nitrogen charging function can be configured (before filling, during filling, after filling).
5.Quick changeover time for different bottle size.

Application in hospital:

15

Technical Specifications:

Filling, Nitrogen Charging, Stoppering Machine

Item

 Machine model

CNGFS16/10

 CNGFS24/10 CNGFS36/20 CNGFS48/20
Production capacity 60-100BPM 100-150BPM 150-300BPM 300-400BPM
Applied bottle size 50ml, 100ml, 250ml, 500ml
Filling accuracy ±1.5%
Compressed air (m³/h) 0.6Mpa 1.5 3 4 4.5
Power supply KW 4 4 6 6
Weight T 7.5 11 13.5 14
Machine size (L×W×H)(MM) 2500*1250*2350 2500*1520*2350 3150*1900*2350

3500*2350*2350
